Flexible Fabrication Options

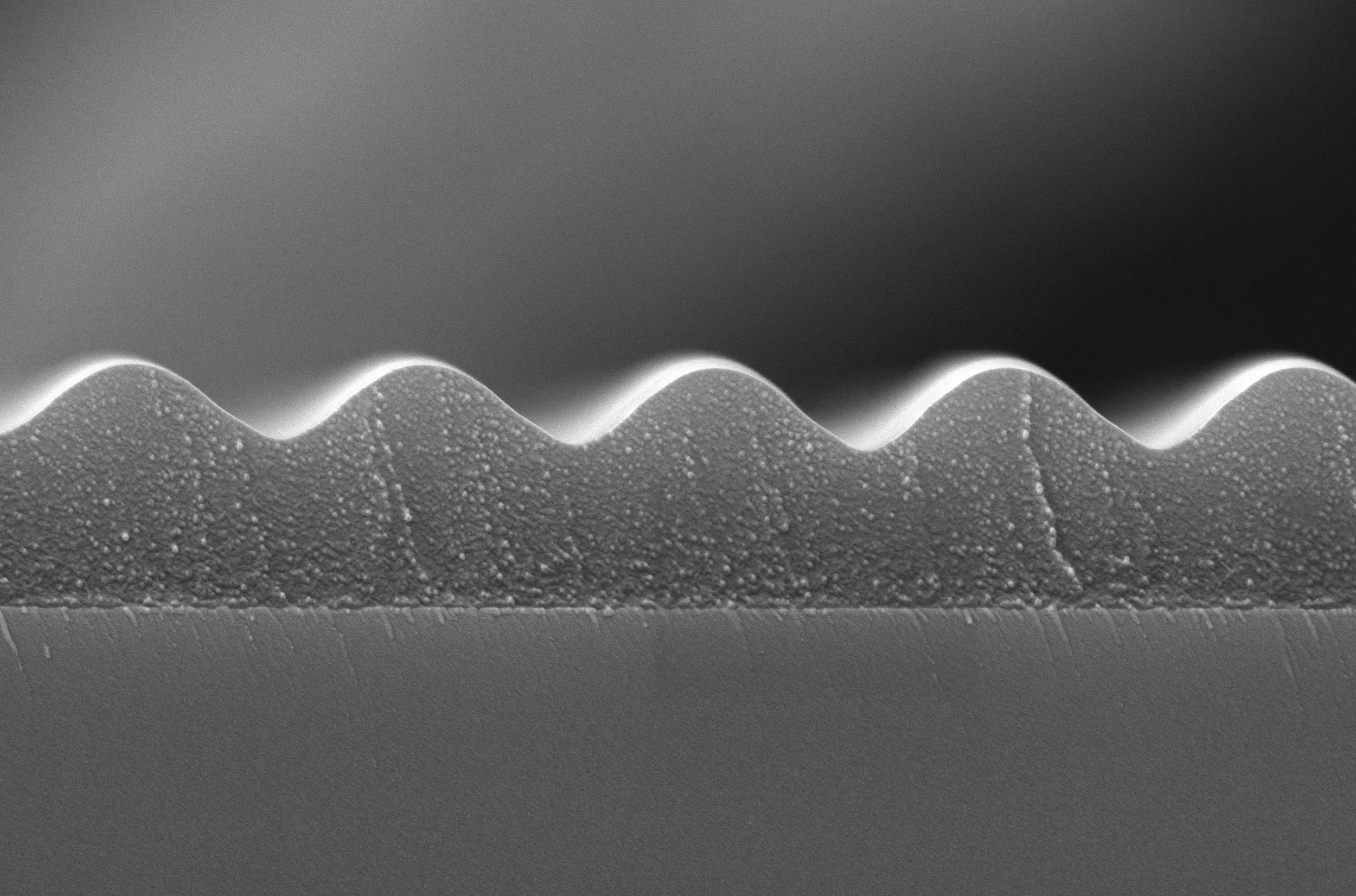

VectorScribe uses photomechanical media and digital polarization optics to write transverse features 700 nm - 10 µm, and from 10 nm up to 1 µm in height.
Digital optics enables rapid turnaround of arrayed, chirped, and/or variable orientation gratings, among others.
Available substrates: polymer on glass, PDMS, OrmoStamp, flexible polymer film
Surface area up to 25 mm x 25 mm
Metallic overcoating available
With no minimum order required, VectorScribe is ideal for prototyping, R & D, or any application needing a master surface structure. Contact us to see how we can print your JPG image, diffractive optical element, etch mask or other design.
Custom Diffractive Optical Elements
Chirped holographic diffraction gratings
Micro-Fresnel zone sin phase plates

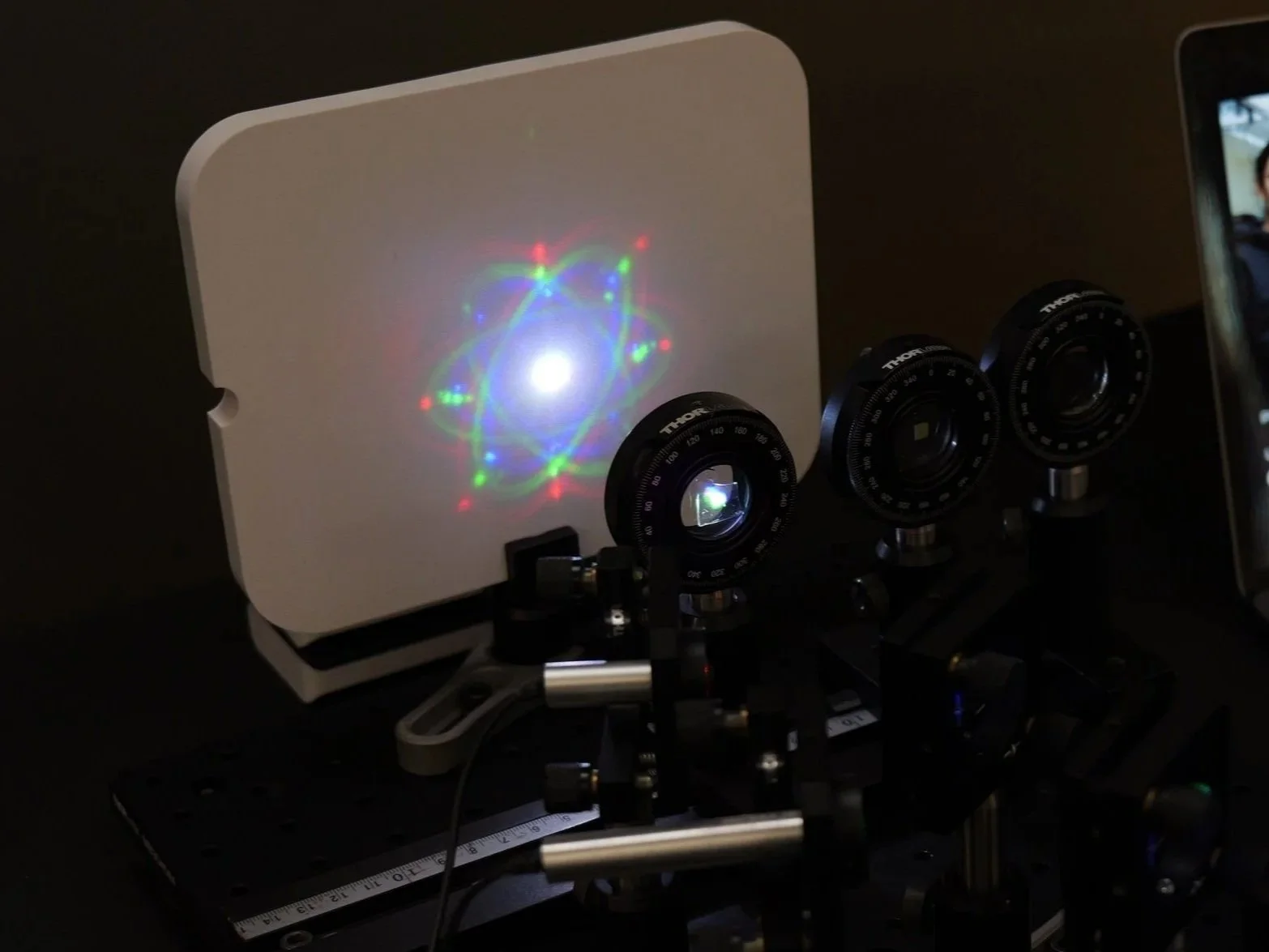

Inverse design: From your JPG, we print a DOE visible with laser pointer
Micrograting Arrays/Structured Color
Structured Color via RGB diffractive arrays
Diffractive image generation
Multiplexed gratings for motion simulation
Flexible Substrate Printing
Film deposition and writing directly on acetate, PVC, PET films
Replication using hot imprint on transparent film also available
Micrograting Array in PDMS
Master microstructures replicated in transparent PDMS
Replication in UV curable (eg. Ormostamp) also available
Coming soon: Benchtop Microprinter
Print your own DOE in real time, with no post-exposure chemical processing required.
Need a microstructure that can be erased and reconfigured? Need a dynamic microstructure? The VectorScribe benchtop printer is your solution, and is ideal for materials science and bioengineering applications.
Need a source of spatially-addressed linearly polarized light? The VectorScribe benchtop printer can easily be configured as a polarization projector for polarimetry, polarized light microscopy, and thin-film analysis applications.
